Used to indicate cable or pipe route direction on Outside Plant Signs. Simply clean the surface of the sign and apply to sign indicating direction of underground facility.
** Arrow (Black Vinyl)
MJA010290 Arrow - 1.75" x 1", Die Cut, Black (RUS)
LIST | 100 ea. | 500 ea. | 1000 ea. |
---|---|---|---|
$.35 | $.25 | $.18 | $.15 |
**** Premium Vinyl, 4 mil., 7 Year Life.
Reduce costly mistakes and accidents with these highly visible marking flags!
Used to warn, identify, and direct usage of existing equipment, cables, duct, pipe, etc.
4" x 5" x 21" Wire Staff - Standard Size.
**** Custom flags are available on request. Call for current pricing.
STANDARD COLOR CODE FOR TEMPORARY MARKING OF UNDERGROUND FACILITIES
Clips on cable, pipe, tubing, or duct work.
Provides identification and hazard warnings.
Six standard sizes.
** Clip-on (Black on Orange)
Cable-Clip, for .5 - 1" Cable Diameter, 4" wide or 8" wide
Cable-Clip, for .75 - 1.75" Cable Diameter, 4" wide or 8" wide
Cable-Clip, for 1.5 - 2.5 " Cable Diameter, 4" wide or 8" wide
**** Rigid Vinyl Plastic, 15 mil., Six standard sizes. ( 6" wide and other colors available )
Used to provide warnings of potential hazards and how to avoid these hazards, to comply with existing standards, to give company identification and notification numbers, and to provide existing locations of outside plant facilities.
**** Premium vinyl, 4 mil., 7 Year Life. Call for quantity prices.
Patches are used to change phone numbers on outside plant facilities. Patches are made to fit over old numbers, name changes, and logo changes, to add a more recent or required identification to existing signage.
**** Premium Vinyl, 4 mil., 7 Year life. Call for a quote on your customized needs.
MJA061888 MJA062088 MJA061788 MJA940923
Used to provide warnings of potential hazards and how to avoid these hazards, to comply with existing standards, to give company identification and notification numbers, and provide existing locations of outside plant facilities. Made from high density linear polyethylene U.V. stabilized material. Special sizes available upon request.
** Sign (Black on Orange or Yellow)
Quad-Fold, 14 x 15, one color .055
Quad-Fold, 14 x 15, two color .055
Sign - 3.5 x 12 (.125)
Sign - 3.75 x 11.75 (.125)
Sign - 4 x 9 (.125)
Sign - 4 x 12 (.125)
Sign - 8 x 14.5 (.125)
Sign - 9 x 12 (.125)
Sign - 14 x 10 (.125)
Sign - 14 x 20 (.125)
Sign - 20 x 14 (.125)
Tri-Fold, 10.5 x 15, two color .055
Tri-Fold, 10.5 x 15, one color .055
Wrap-Around, 12 x 15, one color .055
Wrap-Around, 12 x 15, two color .055
** Linear High Density Polyethylene. Standard Material: Orange, White, Yellow. Other sizes and colors available.

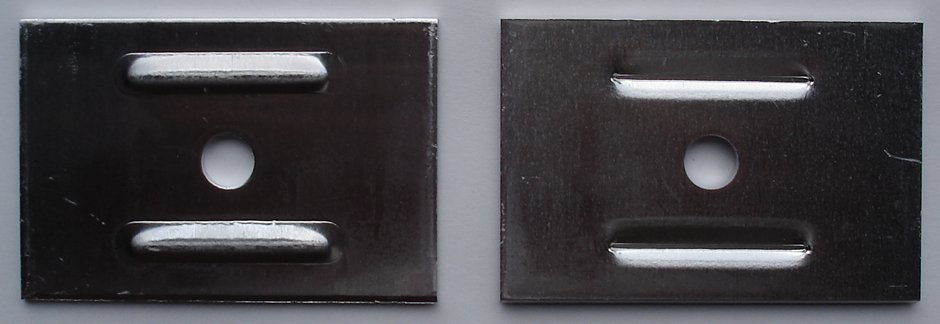

The New SSB-2 Sign Support Bracket is an aluminum bracket 3" x 2", used to support plastic and aluminum signs mounted to a standard U Channel Post. The New SSB-2 is designed to fit between individual 1" centers on the U Channel Post, allowing closer end support of signs. (Replaces the old SSB-1)
The aluminum rivet mounting system, shown above, is a vibration-proof, tamper-proof, and labor saving system used to mount your outside plant signage needs. This method of fastening signs to post will prevent loss of signs due to theft of bolts.
To order the package necessary for your individual application; measure the thickness of your sign, measure the U Channel Post's depth (from below the SSB-2 to the base of the U Channel post where the Blind Rivet will enter the post), and add .090 for the thickness of the SSB-2. This will give you the Grip Range required for the 2 piece aluminum rivet. Order 2 ea. rivets and 2 ea. SSB-2 for each sign to be installed.
PRODUCT CODE | DESCRIPTION | 100+ ea. |
250+ ea. |
500+ , 1000+ ea. |
---|---|---|---|---|
SSB-2 | Sign Support Bracket | $.60 | $.57 | $.54 , $.51 |
R118 | Rivet-Grip Range 7/8 -1 1/8" (100ea./Bag) Male & Female | $.35 | $.33 |
$.30 |
R158 | Rivet-Grip Range 1 3/8 - 1 5/8" (100ea./Bag) Male & Female | $.40 | $.36 |
$.32 |
R178 | Rivet-Grip Range 1 5/8 - 1 7/8" (100ea./Bag) Male & Female | $.47 | $.43 |
$.40 |
R218 | Rivet-Grip Range 1 7/8 - 2 1/8" (100ea./Bag) Male & Female | $.49 | $.45 |
$.42 |
G-28 | Rivet Installation Tool | $40.00 ea. |
Used to warn, identify, and direct usage of existing equipment, cables, duct, pipe, etc.
** Tag (Black on Orange or Yellow)
Tag - 3 x 1.5, loose wire/clamp, .015
Tag - 3.5 x 2, 6 Oval Holes, .015
Tag - 4 x 1.75, 6 Oval Holes, .015
**** Linear High Density Polyethylene. Standard Material: Orange, White, Yellow.
